How to Test an Ignition Coil: Tools, Steps & Results Explained

December 3, 2025

Key Takeaways

Before diving into the detailed testing process, here's what you need to know about testing ignition coils:

A digital multimeter is your essential tool for accurate resistance testing of both primary and secondary coil windings
Visual inspection comes first - look for cracks, carbon tracking, oil contamination, or burn marks before any electrical testing
Normal primary resistance ranges from 0.4 to 2 ohms, while secondary resistance typically falls between 6,000 to 15,000 ohms
Testing takes only 10-15 minutes and can save you hundreds of dollars in unnecessary repairs or misdiagnosis
Always disconnect the battery before testing to prevent electrical shock and protect sensitive vehicle electronics

Looking for quality replacement ignition coils after your diagnosis? Check out our complete ignition components collection for reliable parts.

Introduction

Picture this: you're driving down the highway when suddenly your engine starts misfiring, the check engine light flashes ominously, and your smooth ride turns into a shuddering nightmare. More often than not, a failing ignition coil is the culprit behind these unsettling symptoms.

Ignition coils transform your battery's 12 volts into the 15,000 to 45,000 volts needed to create a spark across your spark plugs. When they fail, your engine's performance suffers immediately. The good news? Testing an ignition coil is a straightforward DIY task that requires minimal tools and can be completed in your driveway in less than 20 minutes.

In this comprehensive guide, I'll walk you through everything you need to know about how to test an ignition coil, from recognizing the warning signs to interpreting multimeter readings like a professional technician.

Understanding Ignition Coils and Failure Signs

An ignition coil is essentially a high-voltage transformer with two wire coils wrapped around an iron core: a primary winding with relatively few turns of heavy wire, and a secondary winding with thousands of turns of fine wire. When current through the primary winding is suddenly interrupted, the collapsing magnetic field induces high voltage in the secondary winding—this creates the spark at your spark plugs.

Recognizing the Signs of a Failing Ignition Coil

From my experience testing dozens of ignition coils across various vehicles, certain symptoms consistently point to coil failure:

Engine Performance Issues:

Random or consistent cylinder misfires
Rough idling that feels like the engine is "missing"
Hesitation or stumbling during acceleration
Noticeable loss of power, especially under load
Backfiring through the intake or exhaust

Dashboard Indicators:

Check engine light illuminated (especially with P0300-P0308 codes)
Reduced fuel economy without explanation
Engine running rougher when cold or hot

Physical Evidence:

Oil-soaked coil boots or connectors
Visible cracks in the coil housing
Carbon tracking marks (thin black lines on the coil body)
Burnt smell near the engine compartment

Important Note: These symptoms can also indicate spark plug problems, fuel delivery issues, or wiring faults. That's precisely why proper testing is essential—it eliminates guesswork and prevents throwing parts at the problem.

Essential Tools for Testing Ignition Coils

The beauty of ignition coil testing is that it doesn't require expensive specialty tools. Here's what you'll need:

Required Tools

Digital Multimeter (DMM) - This is your primary diagnostic tool capable of measuring resistance (ohms) and voltage. A basic automotive multimeter in the $20-50 range works perfectly.

Helpful Additional Tools

Spark plug tester - allows you to verify spark strength visually
OBD-II scanner - identifies which cylinder is misfiring
Flashlight or work light - for visual inspection
Safety glasses - always protect your eyes when working near the engine

Safety Equipment (Non-Negotiable)

Insulated gloves - ignition coils can store lethal voltage even when the engine is off
Battery disconnect tool or wrench - to safely disconnect the negative battery terminal

Warning: Ignition coils produce extremely high voltage that can cause serious injury or death. Always disconnect your battery's negative terminal before testing, and never touch coil terminals while the engine is running or the ignition is on.

Step-by-Step Guide: How to Test an Ignition Coil with Multimeter

Now let's get to the practical work. Testing ignition coil with multimeter involves checking both the primary and secondary windings for proper resistance.

Step 1: Safety First - Prepare Your Workspace

Before touching anything:

Park your vehicle on level ground and engage the parking brake
Turn off the engine and remove the keys from the ignition
Disconnect the negative battery terminal and secure the cable away from the battery post
Wait at least 5 minutes to allow capacitors to discharge
Put on your safety glasses and insulated gloves

Pro Tip: Take a photo of the coil and its wire connections before disconnecting anything. This simple step has saved me countless headaches during reassembly.

Step 2: Visual Inspection - Look Before You Test

Many ignition coil failures can be diagnosed visually before you even touch your multimeter. Inspect each coil carefully for:

Physical damage indicators:

Cracks in the plastic housing or casing
Burn marks or melted plastic
Corrosion on electrical terminals
Oil or coolant contamination (especially in the coil boot)
Carbon tracking - thin black lines that indicate electrical discharge paths

Connection issues:

Loose or corroded electrical connectors
Damaged or frayed wiring
Bent or broken terminal pins

If you spot cracks, carbon tracking, or severe corrosion, the coil has almost certainly failed and should be replaced regardless of multimeter readings.

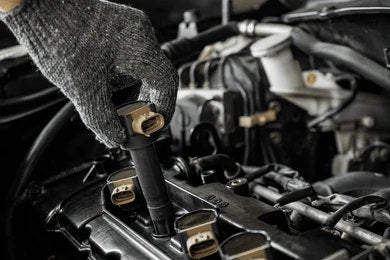

Step 3: Remove the Ignition Coil

For coil-on-plug systems (most common in modern vehicles):

Disconnect the electrical connector by pressing the release tab and pulling straight up
Remove the mounting bolt (typically 8mm or 10mm)
Twist the coil gently while pulling straight up to break the seal with the spark plug
Inspect the rubber boot for oil, carbon buildup, or damage

Step 4: Testing Primary Resistance

The primary winding is the low-voltage side of the coil. Here's how to test ignition coil primary resistance:

Set up your multimeter:

Turn the dial to the ohms (Ω) setting
Select the 200-ohm range if your meter has multiple options
Touch the red probe to one primary terminal (inside the electrical connector)
Touch the black probe to the other primary terminal

Interpret the reading:

Normal range: 0.4 to 2.0 ohms (varies by manufacturer—check your service manual)
Reading of 0 ohms (or OL) indicates a short circuit in the primary winding
Reading of infinite resistance (open circuit) means the primary winding has broken
Readings significantly outside the normal range indicate coil failure

In my experience testing various vehicles, most healthy ignition coils show primary resistance between 0.6 and 1.2 ohms.

Step 5: Testing Secondary Resistance

The secondary winding produces the high voltage for spark creation. This test is equally important:

Set up your multimeter:

Switch to the highest ohm range (typically 20K or 200K ohms)
Touch the red probe to one of the primary terminals
Touch the black probe to the secondary terminal (spark plug connection inside the rubber boot)

Interpret the reading:

Normal range: 6,000 to 15,000 ohms (6K to 15K Ω)
Some high-performance coils may read up to 20,000 ohms
Reading of infinite resistance indicates an open circuit (broken secondary winding)
Reading significantly below normal suggests insulation breakdown

Important Note: Secondary resistance specifications vary considerably between manufacturers. Always consult your vehicle's service manual for exact values.

Step 6: Heat Testing for Intermittent Failures

Here's a professional technique that many DIYers overlook: temperature-dependent testing. Some ignition coils test perfectly fine when cold but fail once they reach operating temperature.

Procedure:

Perform the primary and secondary resistance tests when cold and record readings
Carefully warm the coil with a heat gun on low setting (or let the engine warm up)
Repeat the resistance tests immediately while the coil is warm
Compare the readings

What to look for: Resistance values should remain relatively stable (within 10-15% is normal). Dramatic changes (50% or more) indicate heat-related failure.

This testing method has helped me diagnose countless intermittent misfire conditions that only occurred during highway driving or after the engine warmed up.

Interpreting Your Test Results: What the Numbers Mean

Understanding your multimeter readings is crucial for accurate diagnosis:

Scenario 1: Both Primary and Secondary Readings Are Normal

Diagnosis: The ignition coil is electrically sound. Your issue likely stems from faulty spark plugs, damaged wiring, poor connections, or other engine management problems.

Action: Inspect spark plugs, check plug gaps, examine wiring, and consider other diagnostic tests.

Scenario 2: Primary Resistance Is Out of Range

Diagnosis: Internal short circuit or open circuit in the primary winding.

Action: Replace the ignition coil. Primary winding failure is not repairable.

Scenario 3: Secondary Resistance Is Out of Range

Diagnosis: Secondary winding failure due to insulation breakdown or wire breakage, often caused by age, excessive heat, or oil contamination.

Action: Replace the ignition coil. Secondary winding issues cannot be repaired.

Scenario 4: Readings Change Significantly with Temperature

Diagnosis: Heat-related failure, often caused by failing internal insulation that expands when hot.

Action: Replace the coil. This intermittent failure will only worsen over time and leave you stranded.

Common Mistakes to Avoid When Testing Ignition Coils

Through years of troubleshooting, I've seen several common errors:

Not disconnecting the battery: This risks electric shock and inaccurate readings. Always disconnect the negative terminal first.
Testing only when cold: Many coil failures are heat-related and won't appear during cold testing.
Ignoring visual inspection: A coil can have perfect electrical readings but still fail due to cracks or carbon tracking.
Comparing readings across different coil brands: Resistance specifications vary by manufacturer. Always reference your specific vehicle's service manual.
Replacing only the failed coil on high-mileage vehicles: If one coil has failed after 100,000+ miles, others are likely near the end of their service life.

Maintaining Your Ignition System for Longevity

Prevention is always better than diagnosis. Here are practical tips for extending ignition coil life:

Regular maintenance practices:

Replace spark plugs at manufacturer-recommended intervals (typically 30,000-100,000 miles)
Use the correct spark plug gap—over-gapped plugs stress coils excessively
Keep the engine cooling system in good condition—overheating accelerates coil failure
Address oil leaks promptly—oil contamination destroys coil insulation

When replacing ignition coils:

Always use OEM-quality parts or reputable aftermarket brands
Apply dielectric grease to coil boots to prevent moisture intrusion
Replace the spark plug when installing a new coil
Check and clean electrical connectors before installing new coils

Pro Tip: When one coil fails on a vehicle with 80,000+ miles, seriously consider replacing all coils at once. The labor cost for access is often the same whether you're replacing one or all coils.

For quality replacement parts when you need them, explore our comprehensive ignition components collection with options for most makes and models.

Frequently Asked Questions

Q: Can I test an ignition coil without removing it from the vehicle?

Yes, you can perform basic resistance tests with the coil installed, but you'll need to disconnect the electrical connector. However, removing the coil allows for thorough visual inspection and more accurate testing.

Q: How long do ignition coils typically last?

Most ignition coils last between 80,000 and 150,000 miles, though this varies significantly based on driving conditions and maintenance. Coil-on-plug systems generally have shorter lifespans due to higher heat exposure.

Q: Will a bad ignition coil throw a check engine code?

Usually yes, but not always. Complete coil failure almost always triggers a misfire code (P0300-P0308). However, weak coils that still produce some spark may cause drivability issues without setting codes immediately.

Q: Can I drive with one bad ignition coil?

Technically yes, but you shouldn't. Driving with a misfiring cylinder causes unburned fuel to enter the exhaust system, which can damage your catalytic converter—an expensive repair. It also reduces fuel economy and puts stress on remaining cylinders.

Q: Why do all my ignition coils keep failing?

Repeated coil failure usually indicates an underlying problem. Common causes include incorrect spark plug gap (most common), wrong spark plug type, engine oil leaking onto coils, excessive engine heat, poor quality replacement coils, or electrical problems.

Q: Do I need an automotive multimeter, or will any multimeter work?

Any digital multimeter capable of reading ohms will work for basic ignition coil testing. A $20 hardware store multimeter will give you accurate resistance readings. Just ensure it can measure both low resistance (0-200 ohms) and high resistance (0-20,000 ohms).

Conclusion: Empowering Your DIY Diagnostic Skills

Learning how to test an ignition coil with multimeter is one of the most valuable diagnostic skills for any vehicle owner. This straightforward procedure takes less than 20 minutes, requires minimal investment in tools, and can save you hundreds of dollars in unnecessary repairs or misdiagnosis.

Remember the key principles: start with visual inspection, use your multimeter to check both primary and secondary resistance against manufacturer specifications, test both cold and warm when dealing with intermittent issues, and never ignore weak spark even when resistance readings seem normal.
