What Is an Ignition Coil and How Does It Work in Your Engine?
Key Takeaways
- Ignition coils transform your battery's 12-volt power into 20,000-50,000 volts needed to create the spark that ignites your engine's air-fuel mixture
- Modern engines use individual coil-on-plug systems for each cylinder, improving efficiency and making diagnostics easier than older distributor-based systems
- Common failure symptoms include engine misfires, rough idling, poor fuel economy, and check engine lights—often caused by heat stress, vibration, or oil contamination
- Most ignition coils last 80,000-100,000 miles but can fail prematurely due to spark plug issues, excessive heat, or electrical problems
- Quality replacement parts are critical for maintaining engine performance and preventing costly damage to catalytic converters
For reliable ignition system components and expert solutions, visit BestParts.ca and explore our comprehensive Ignition Collection.
Introduction: The Heart of Your Engine's Spark
Every time you turn your key or press your vehicle's start button, a sophisticated electrical dance begins under your hood. At the center of this performance is a component that most drivers never think about until something goes wrong: the ignition coil. This small but mighty device is responsible for creating the powerful electrical spark that ignites the air-fuel mixture in your engine's cylinders, ultimately bringing your vehicle to life.
Understanding what an ignition coil is and how it functions isn't just automotive trivia—it's practical knowledge that can help you diagnose problems, make informed repair decisions, and appreciate the engineering marvel that gets you from point A to point B. Whether you're experiencing engine performance issues or simply want to understand your vehicle better, this comprehensive guide will demystify the ignition coil and its critical role in your engine's operation.
Understanding Ignition Coils: The Voltage Transformer of Your Engine
An ignition coil is essentially a high-voltage transformer that converts your vehicle's 12-volt battery power into the thousands of volts needed to create a spark across the spark plug gap. Think of it as an electrical amplifier specifically designed for one purpose: generating enough voltage to jump the gap in your spark plugs and ignite the compressed air-fuel mixture in your engine's combustion chambers.
The basic principle behind ignition coils has remained relatively unchanged since their invention, though modern implementations have become far more sophisticated and reliable. At its core, an ignition coil consists of two copper wire coils wrapped around an iron core:
The primary coil contains several hundred turns of heavier-gauge wire and connects directly to your vehicle's battery through the ignition system. This coil builds up a magnetic field when electrical current flows through it.
The secondary coil wraps around the primary coil with thousands of turns of much thinner wire—sometimes 15,000 turns or more. This massive difference in the number of windings creates the voltage multiplication effect that generates the high voltage needed for ignition.
When your engine's computer (ECM) determines it's time to fire a spark plug, it does something counterintuitive: it cuts off the current flowing through the primary coil. This sudden interruption causes the magnetic field to collapse rapidly, and according to electromagnetic principles, this collapsing field induces a massive voltage spike in the secondary coil—often reaching 20,000 to 50,000 volts or even higher in modern engines.
This high voltage then travels through the spark plug wire (or directly to the spark plug in coil-on-plug systems) and jumps the gap in the spark plug, creating the spark that ignites your air-fuel mixture at precisely the right moment in your engine's combustion cycle.
How Ignition Coils Work: From Battery Power to Lightning Bolt
The operation of an ignition coil represents one of the most elegant applications of electromagnetic induction in automotive engineering. Let's break down the complete cycle of how these components generate the spark your engine needs:
The Charging Phase
When your engine is running, the engine control module (ECM) continuously monitors engine position, speed, and load to determine the optimal ignition timing. When it's almost time to fire a particular cylinder, the ECM closes the circuit to that cylinder's ignition coil, allowing current from the battery to flow through the primary winding.
As current flows through the primary coil, it creates a magnetic field around the iron core. This field builds up over a period of several milliseconds—typically 2-4 milliseconds depending on the system design. During this "dwell time," energy is being stored in the magnetic field, much like compressing a spring stores mechanical energy.
The Discharge Phase
At the precise moment when the piston in that cylinder reaches the optimal position (usually just before top dead center on the compression stroke), the ECM opens the circuit to the primary coil. This sudden interruption is where the magic happens.
The magnetic field, which had been sustained by the flowing current, suddenly collapses. According to Faraday's Law of electromagnetic induction, this rapidly changing magnetic field induces voltage in both the primary and secondary coils. However, because the secondary coil has so many more windings than the primary coil, the voltage induced in the secondary coil is multiplied by approximately the ratio of turns between the two coils.
This voltage multiplication can be dramatic. A 12-volt input can be transformed into 20,000 to 50,000 volts or more in the secondary coil. Modern high-performance and direct injection engines may generate even higher voltages to ensure reliable ignition under high-pressure conditions.
The Spark Event
This massive voltage surge seeks the path of least resistance to ground, which is through the spark plug. The high voltage jumps the air gap between the spark plug's center electrode and ground electrode, creating an electrical arc—the spark that ignites your air-fuel mixture.
The spark itself lasts only a fraction of a second, but it's enough to initiate combustion. The burning air-fuel mixture then expands rapidly, driving the piston down and producing the power that moves your vehicle. This entire process happens thousands of times per minute in each cylinder of your engine.
Types of Ignition Coils: Evolution of a Critical Component
Ignition coil technology has evolved significantly over the decades, with each generation improving reliability, efficiency, and performance. Understanding these different types helps you identify what system your vehicle uses and what to expect when replacement becomes necessary.
Conventional Distributor-Based Coils
Older vehicles (typically pre-1990s) used a single ignition coil paired with a mechanical distributor. This system generated high voltage at the coil, which was then routed through the distributor to the appropriate spark plug wire based on engine timing.
While simple and relatively reliable for their time, these systems had limitations:
- The mechanical distributor introduced wear points and timing drift
- One coil had to service all cylinders, limiting performance potential
- Long spark plug wires introduced resistance and potential for electrical interference
- Moisture and corrosion in the distributor cap could cause misfires
Waste Spark Systems
As electronics advanced in the 1980s and 1990s, many manufacturers adopted waste spark ignition systems. These used one coil for every two cylinders, with each coil firing two spark plugs simultaneously—one on the compression stroke (the working spark) and one on the exhaust stroke (the "waste" spark).
Benefits of this design included:
- Elimination of the mechanical distributor and its wear points
- Shorter spark plug wires reducing electrical resistance
- More precise electronic timing control
- Reduced maintenance requirements
The main limitation was that the waste spark represented a slight efficiency loss, as energy was used to create a spark during the exhaust stroke when it wasn't needed.
Coil-On-Plug (COP) Systems
Modern vehicles almost exclusively use coil-on-plug systems, where each cylinder has its own dedicated ignition coil mounted directly on top of the spark plug. This represents the current standard for good reasons:
Individual control: The ECM can adjust ignition timing and dwell time independently for each cylinder, optimizing performance and efficiency.
No spark plug wires: Direct mounting eliminates high-voltage wires and the electrical losses and interference they introduced.
Easier diagnostics: When a coil fails, it affects only one cylinder, making identification straightforward through diagnostic trouble codes.
Improved reliability: Shorter electrical paths and individual coils reduce the stress on each component.
Better performance: Higher voltage capability and more precise timing enable advanced combustion strategies like direct injection and lean-burn operation.
I've driven vehicles with all three systems, and the difference in smoothness, starting reliability, and maintenance requirements with modern COP systems is remarkable. Where older distributor systems might require tune-ups every 30,000 miles, COP systems often run 100,000 miles or more with no ignition-related maintenance beyond spark plug replacement.
Coil Pack Systems
Some engines use a coil pack configuration, where multiple coils are housed in a single assembly but each still serves one or two cylinders. This represents a middle ground between waste spark and fully independent COP systems, offering improved packaging in tight engine bays while maintaining many benefits of individual coils.
Signs of a Failing Ignition Coil: Recognizing the Symptoms
Ignition coils are robust components, but they don't last forever. Heat cycling, vibration, and electrical stress eventually take their toll. Recognizing the signs of a failing ignition coil can help you address problems before they lead to more serious damage or leave you stranded.
Engine Misfires
The most common and obvious symptom of a failing ignition coil is an engine misfire. When a coil can't generate sufficient voltage, the spark plug won't fire consistently or at all. You'll feel this as a noticeable stumble or hesitation in engine operation, particularly under acceleration or when the engine is under load.
In coil-on-plug systems, a failed coil typically affects only one cylinder, creating a distinct pattern. The misfire may be constant or intermittent, often worsening as the coil heats up during operation. Many drivers first notice this as a rhythmic stumble or vibration at idle that smooths out slightly at higher RPMs.
Check Engine Light and Diagnostic Codes
Modern vehicles will almost always illuminate the check engine light when ignition problems occur. The engine control module detects misfires through various sensors and stores diagnostic trouble codes (DTCs) that can pinpoint the problem.
Common codes related to ignition coil failure include:
- P0300: Random/multiple cylinder misfire detected
- P0301-P0312: Cylinder-specific misfire codes (the last digit indicates which cylinder)
- P0351-P0362: Ignition coil primary/secondary circuit malfunction codes
A professional scan tool can retrieve these codes and help identify whether the problem is truly the coil or another component in the ignition system like the spark plug or wiring harness.
Rough Idling and Poor Performance
When one or more cylinders aren't firing properly due to weak ignition coils, your engine will exhibit rough idling—a noticeable shake or vibration when sitting at a stoplight. The engine may feel like it's struggling to maintain steady RPM, and you might notice the tachometer needle bouncing slightly.
Performance suffers as well. Acceleration becomes sluggish, and the engine may feel like it's lacking power, especially during highway merging or hill climbing. This happens because the engine is essentially running on fewer cylinders than it was designed for, reducing power output proportionally.
Reduced Fuel Economy
Failed or weak ignition coils lead to incomplete combustion, which means unburned fuel is passing through the engine and out the exhaust. Your fuel economy will noticeably decrease—sometimes by 15-25% or more depending on how many coils are affected and how severely.
Beyond wasting fuel, this unburned fuel can damage your catalytic converter as it burns in the exhaust system, potentially leading to expensive repairs far beyond just replacing the ignition coil.
Hard Starting or Stalling
Weak ignition coils can make your engine difficult to start, particularly when cold. You may need to crank the engine longer than normal, or it may start and then immediately stall. This happens because the compromised coils can't reliably ignite the air-fuel mixture during the critical starting sequence.
In severe cases, the engine may start but then stall at idle or when coming to a stop, creating a dangerous situation in traffic.
Backfiring
Occasional backfiring through the intake or exhaust can indicate ignition timing problems related to failing coils. When ignition occurs at the wrong time or incompletely due to weak spark, unburned fuel can ignite in the intake or exhaust manifold, creating the characteristic popping or banging sound.
Oil or Corrosion on Coils
During visual inspection, you might notice oil contamination or corrosion on the coil boots or connectors. Oil leaking from valve cover gaskets can seep into the spark plug wells, contaminating the coils and causing electrical tracking or short circuits. Similarly, moisture intrusion can cause corrosion that compromises the coil's electrical connections.
When to Replace Ignition Coils: Maintenance and Longevity
Understanding when ignition coils need replacement helps you plan for maintenance and avoid unexpected breakdowns. While these components are designed for long service life, several factors influence their longevity.
Expected Service Life
Under normal conditions, modern ignition coils typically last 80,000 to 100,000 miles or more. Some high-quality coils can exceed 150,000 miles, while others may fail prematurely due to various factors. There's no specific replacement interval for ignition coils—they're generally replaced only when they fail or show signs of weakness.
However, age and heat cycling do degrade the coil's internal insulation over time. A 10-year-old coil with relatively low mileage may still be nearing the end of its service life simply due to age-related deterioration.
Factors That Shorten Coil Life
Several conditions can cause premature ignition coil failure:
Spark plug condition: Worn spark plugs with excessively wide gaps require higher voltage to fire, stressing the coils. Fouled or damaged plugs can also arc internally, creating electrical conditions that damage coils. This is why many mechanics recommend replacing spark plugs when installing new coils.
Heat exposure: Excessive engine heat from cooling system problems or poor ventilation in the engine bay accelerates the degradation of the coil's internal insulation and epoxy potting compound.
Moisture and contamination: Oil leaks, coolant leaks, or water intrusion into spark plug wells can cause electrical tracking and short circuits that destroy coils.
Voltage problems: Charging system issues, weak batteries, or electrical system faults can stress ignition coils. Both excessive voltage and voltage fluctuations can damage the coil's internal components.
Vibration and physical damage: Engine mounts that are worn or missing allow excessive engine movement, and physical impacts can crack the coil housing or damage internal components.
Replacement Strategies
When one ignition coil fails, many technicians recommend a careful evaluation before deciding whether to replace just the failed coil or all coils simultaneously. The decision depends on several factors:
For newer vehicles (under 100,000 miles) with a single coil failure and no obvious cause, replacing just the failed coil is often appropriate. This is especially true if the failure appears to be from an external cause like oil contamination that's been corrected.
For higher-mileage vehicles where one coil fails, the remaining coils have experienced similar stress and aging. Many mechanics suggest replacing all coils at once to avoid repeated labor costs and the inconvenience of additional failures in the near future.
Cost considerations matter too. While replacing all coils at once costs more upfront, it's typically cheaper than multiple separate repairs when you factor in labor charges. On a V6 or V8 engine, the labor to access and replace coils can represent a significant portion of the repair cost.
From my experience working with clients on their vehicles, the "replace them all" approach makes the most sense on vehicles beyond 100,000 miles or when multiple coils have already failed. For newer vehicles with isolated failures, replacing the single coil—along with checking and potentially replacing the spark plug in that cylinder—usually provides good results.
Quality Matters
Not all replacement ignition coils are created equal. Original Equipment (OE) or premium aftermarket coils typically offer the best reliability and performance. Bargain-brand coils may save money initially but often fail prematurely, sometimes within months of installation.
Quality coils feature:
- Proper voltage output specifications matching your engine's requirements
- High-temperature insulation materials that resist degradation
- Robust construction that withstands vibration and thermal cycling
- Correct electrical characteristics for optimal dwell time and spark energy
When sourcing replacement coils, choose reputable suppliers who stock quality components. Our Ignition Collection features premium ignition system components specifically selected for reliability and performance, ensuring your repair lasts.

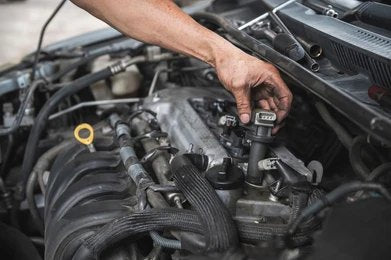

The Installation Process
Replacing ignition coils is relatively straightforward on most vehicles, though access can be challenging depending on engine design. The basic process involves:
- Disconnect the battery to prevent electrical shorts
- Remove any covers or components blocking access to the coils
- Disconnect the electrical connector from the failed coil
- Remove the coil mounting bolt (usually just one per coil)
- Carefully pull the coil from the spark plug well
- Inspect the spark plug well for oil or contamination
- Check and potentially replace the spark plug
- Install the new coil with fresh dielectric grease on the boot
- Secure the mounting bolt and reconnect the electrical connector
- Clear diagnostic codes and verify proper operation
If oil is present in the spark plug wells, the valve cover gaskets should be replaced before installing new coils to prevent premature failure of the new components.
Preventing Ignition Coil Problems: Proactive Maintenance
While you can't prevent ignition coil wear entirely, several maintenance practices extend their service life and help you avoid premature failures.
Regular Spark Plug Replacement
Following your vehicle manufacturer's spark plug replacement schedule is crucial. Modern platinum or iridium spark plugs may last 60,000-100,000 miles, but they shouldn't be pushed beyond their service interval. Worn plugs with excessive gap width stress ignition coils and can lead to premature coil failure.
Address Oil Leaks Promptly
Oil leaking into spark plug wells is one of the most common causes of premature coil failure. If you notice oil on your ignition coils during inspection, repair the source of the leak—typically valve cover gaskets or spark plug tube seals—before it destroys your coils.
Maintain Your Cooling System
Excessive engine heat accelerates ignition coil degradation. Keep your cooling system in good condition by following coolant replacement intervals, checking for leaks, and ensuring your cooling fans and thermostat function properly.
Keep Your Electrical System Healthy
A properly functioning charging system with a healthy battery ensures stable voltage to your ignition system. Have your battery and alternator tested regularly, especially as they age, to prevent voltage-related damage to sensitive electronic components including ignition coils.
Use Quality Fuel and Follow Service Intervals
Carbon buildup from low-quality fuel or skipped maintenance intervals can contribute to ignition problems. Using quality fuel and following your manufacturer's recommended service schedule helps maintain overall engine health, reducing stress on ignition components.
FAQ: Common Questions About Ignition Coils
How long do ignition coils typically last?
Most modern ignition coils last 80,000 to 100,000 miles under normal operating conditions, though some can exceed 150,000 miles. Service life depends on factors like driving conditions, maintenance practices, spark plug condition, and exposure to heat and contamination. Quality coils from reputable manufacturers generally outlast cheaper alternatives.
Can I drive with a bad ignition coil?
While technically possible, driving with a failed ignition coil is not recommended. A misfiring cylinder reduces power and fuel economy while potentially damaging your catalytic converter with unburned fuel. The misfire can also cause other engine damage over time and may leave you stranded. If you detect a misfire, have it diagnosed and repaired promptly.
Should I replace all ignition coils at once?
For vehicles under 100,000 miles with a single coil failure, replacing just the failed coil is often sufficient. However, on higher-mileage vehicles or when multiple coils have already failed, replacing all coils simultaneously is often more cost-effective than dealing with repeated individual failures. Consult with your mechanic about the best approach for your specific situation.
What causes ignition coils to fail?
Common causes of ignition coil failure include heat stress, vibration, worn spark plugs requiring excessive voltage, oil or moisture contamination, electrical system problems, and age-related degradation of internal insulation. Preventing these issues through proper maintenance extends coil life significantly.
Conclusion: The Vital Role of Ignition Coils in Engine Performance
Understanding what an ignition coil is and how it works empowers you to make informed decisions about your vehicle's maintenance and repairs. These remarkable devices transform modest battery voltage into the lightning-like sparks that bring your engine to life thousands of times per minute, and their reliable operation is fundamental to your vehicle's performance, efficiency, and longevity.
Modern coil-on-plug systems represent a significant advancement in reliability and performance over older distributor-based designs, but they still require quality components and proper maintenance to deliver their full service life. Recognizing the symptoms of failing coils—misfires, rough idling, poor fuel economy, and check engine lights—allows you to address problems before they lead to more expensive damage or leave you stranded.
When replacement becomes necessary, choosing quality ignition components from reputable sources ensures reliable performance and longevity. Cutting corners on ignition system parts often leads to premature failures and repeated repairs that cost more in the long run.
